Laser Shaft Alignment Systems Easy-Laser® D450 System
D450 Basic Laser Shaft Alignment System	SPECIFICATIONS

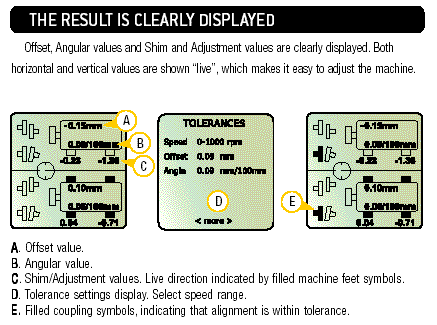

How does it work? principles of Easy-Laser Shaft Alignment see bottom of page!	System Description For users who want a simple, reliable and cost-effective measuring system for the alignment of horizontally-installed machines. Provides vertical and horizontal alignment solutions, graphically on the display screen. Programs With programs for 9-12-3 Horizontal shaft alignment and soft foot, and an easy-to-use Display unit with printer output. Requires 180° of rotation. Typical applications: Pumps, motors, gearboxes. Simple to Operate Features Dual Laser System-each laser fires into the opposing sensor. Similar to reverse-dial method. No training required-follow on-screen instructions. Precision results in less time.

D450 Specifications (System)		Display Unit D279

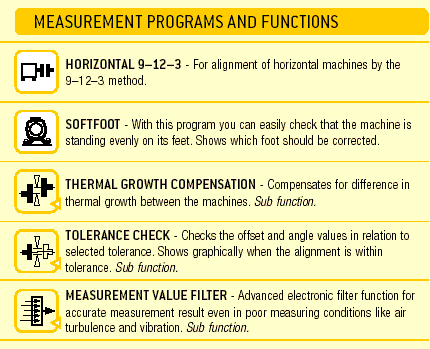

Programs	Horizontal, Softfoot, Thermal Growth Compensation, Tolerance Check, Measurement Value Filter	Housing material	Anodized aluminum / ABS-plastic
Measurement distance	Up to 10 m [33 feet]	Type of display	Dot matrix LCD
Temperature range	0-50°C [32-122°F]	Display size	73×73 mm [2.87"×2.87"]
Relative humidity	10-95%	Displayed resolution	0.001mm, 0.05 mils/thou
Max. displayed error	±1% +1 digit	Battery	4 × 1.5 V R14 (C)
Weight of System	5 kg [11 lbs]	Operating time	24 hours
Carrying case	W×H×D: 420×320×110 mm [16"×12"×4"]	Output port	RS232 for printer
		Memory	1,000 Alignment Measurements
		Settings	Contrast and unit (mil/thou/mm)
		Dimensions	WxHxD: 180×180×45 mm [7.1"×7.1"×1.8"]
top		Weight	1250 g [2.8 lbs]

D450 Specifications (Sensors)		Shaft brackets
Housing material	Anodized aluminum.	Fixture	V-fixture for chain
Type of laser	Diode laser. Class II	Material	Anodized aluminum
Laser wavelength	635-670 nm.	Shaft diameter	Ø 20-450 mm [3/4"-18"] with standard chains.
Laser output power	<1 mW.
Max. Distance	33 feet (10m)	Rods
Type of detectors	PSD 0.39" sq. (10 x 10mm.)	Material	Stainless steel
Linearity	±1% + 1 digit over full range.	Length	60 and 240 mm [2.36" and 9.44"]
Temperature range	32-122°F (0 - 50 °C).
Relative humidity	10% - 95%.
Dimensions	2.4 x 2.4 x 1.97" (60x60x50mm)	Cables
Weight	7 oz (198 g).	Type	With Push/Pull connection
Calibration	Not Required. Units self calibrate.	Length	2 m [78.74"]


D450 Ordering Information	Order P/N 5700-101 email VIBES
	Easy-Laser® D450 System (2) 10 x 10 mm PSD (laser/detectors) with 2m cables. (1) Display Unit D279 with firmware for alignment of horizontal machines and SoftFoot Indicator, Thermal Compensation, Tolerance Check and Measurement Value Filter. (1) Leatherette Cover for Display Unit (2) Fixture Bases with chain fasteners (1) Set 2.5" Risers (1) Set of 9.5" Risers, (2) 36" Chain Extensions (1) Tightening Tool (1) Tape Measure (1) Carrying Case (1) EasyLink™ Windows® based software and Communication Cable

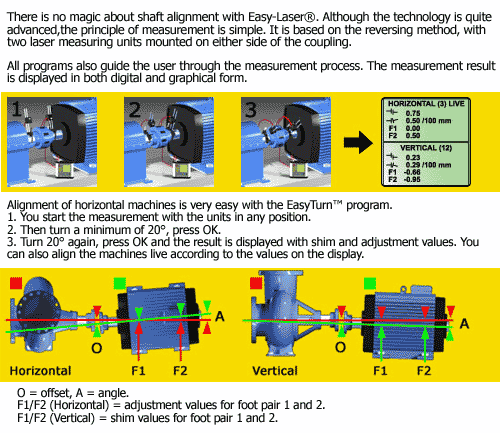

HOW IT WORKS

D150 BTA Digital 2

For simple, quick alignment of belt drives.

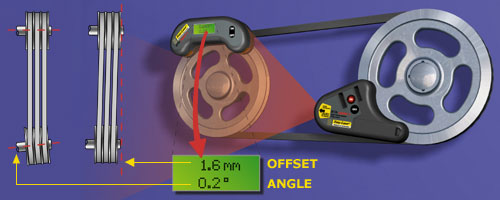

EasyLaser® BTA Digital2 is attached in a few seconds (magnets) with the laser transmitter on one of the sheaves and the detector on the other.

The transmitter generates a laser plane parallel to the reference sheave. The detector reads the position in relation to the laser plane and provides a live digital display of both offset and angular value. This makes the alignment of the adjustable machine very simple.

The accuracy of the digital readout also means that you can align within prescribed tolerances and rely on the result.

Typical applications:
Most belt/chain drives.
